$312.74

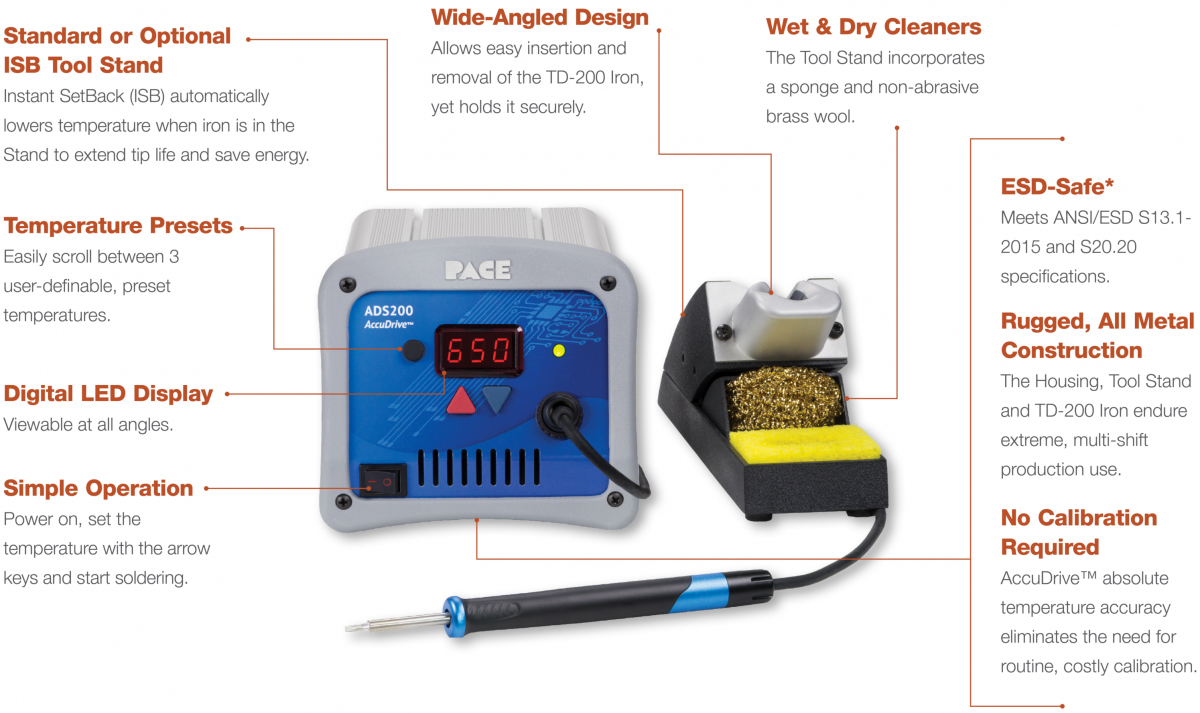

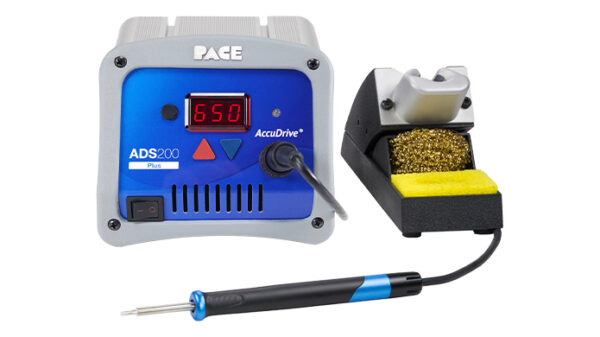

PACE’s ADS200 PLUS is a high power (up to 120 Watts), yet low-cost professional soldering station for serious cell-phone repairers, electronics techs, engineers, DIYers & production solder techs. It features the groundbreaking TD-200 Tip-Heater Cartridge Soldering Iron, with its sleek and ergonomic aluminum handle designed to stay cool and comfortable during continuous production soldering. Blue Series Tip-Heater Cartridges integrate a high accuracy sensor with a robust heater, delivering up to 120 Watts of pure power. *TIP INCLUDED*
At the heart of the ADS200 lies PACE’s new AccuDrive® temperature control technology, which delivers unsurpassed thermal performance and highly accurate temperatures, without the need to change tip cartridges or calibrate. Its advanced electronics provide instantaneous load sensing and on-demand power to quickly reflow solder joints at the lowest, safest temperature required, regardless of the mass of the application. Intended for extreme, multi-shift production use, the ADS200 features a rugged, all-metal design, including housing, soldering iron and tool stand. The system is intuitive and easy to operate – just power it on, set the temperature with arrow keys and start soldering. No training required.
|
Dimensions
|
104mm (4.1″) H x 130mm (5.1″) W x 152mm (6″) D
|
|
Weight
|
2.3kg (5 lbs)
|
|
RoHS Compliant
|
Yes
|
|
Control Technology
|
AccuDrive™
|
|
Tip-to-Ground Resistance
|
2 Ohms or less
|
|
Meets or Exceeds ANSI/J-STD-001
|
Yes
|
|
Tested using ANSI/ESD S13.1-2015
|
Yes. Tested up to 50MHz using S13.1-2015 Method. Meets or Exceeds J-STD-001 and ESD S20.20 Requirements
|
|
Meets or Exceeds ANSI/ESD S20.20
|
Yes
|
|
Temperature Accuracy
|
Meets or Exceeds ANSI/J-STD-001 Requirements
|
|
Temperature Range
|
Temperature Range 193-454°C (380-850°F)
|
|
Tips
|
Uses AccuDrive Blue Series Tip-Heater Cartridges
|
|
Soldering Iron
|
TD-200 AccuDrive™ Tip-Heater Cartridge Soldering Iron
|
|
Tool Stand
|
Can hold up to 7 tips, comes standard with sponge, staymoist well and brass wool to clean oxidation from tip
|
|
Optional Instant SetBack (ISB) Tool Stand
|
Optionally available as P/N 6019-0089-P1 or standard as part of ADS200 Stations P/N 8007-0579 or P/N 8007-0581
|
