$335.90

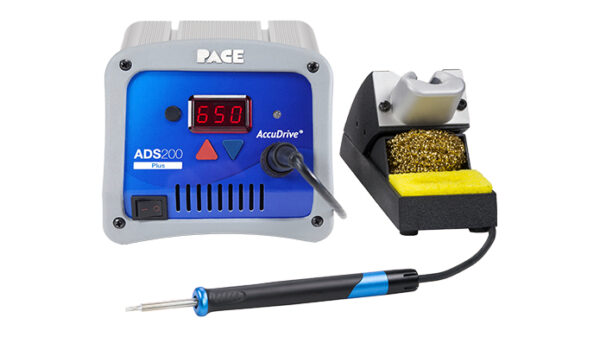

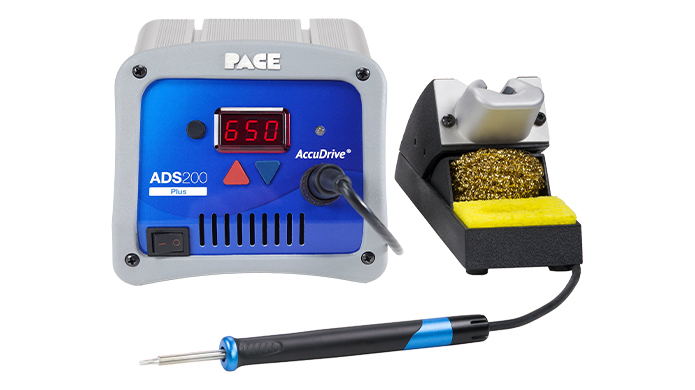

PACE’s ADS200 PLUS is a high power (up to 120 Watts), yet low-cost professional soldering station for serious cell-phone repairers, electronics techs, engineers, DIYers & production solder techs. It features the groundbreaking TD-200 Tip-Heater Cartridge Soldering Iron, with its sleek and ergonomic aluminum handle designed to stay cool and comfortable during continuous production soldering. An Instant Setback (ISB) Tool Stand is included which automatically lowers the temperature when the TD-200 is placed in the stand, greatly increasing tip life as well as saving energy. Blue Series Tip-Heater Cartridges integrate a high accuracy sensor with a robust heater, delivering up to 120 Watts of pure power.
At the heart of the ADS200 lies PACE’s new AccuDrive® temperature control technology, which delivers unsurpassed thermal performance and highly accurate temperatures, without the need to change tip cartridges or calibrate. Its advanced electronics provide instantaneous load sensing and on-demand power to quickly reflow solder joints at the lowest, safest temperature required, regardless of the mass of the application. Intended for extreme, multi-shift production use, the ADS200 features a rugged, all-metal design, including housing, soldering iron and tool stand. The system is intuitive and easy to operate – just power it on, set the temperature with arrow keys and start soldering. No training required.
|
Dimensions
|
104mm (4.1″) H x 130mm (5.1″) W x 152mm (6″) D
|
|
Weight
|
2.3kg (5 lbs)
|
|
RoHS Compliant
|
Yes
|
|
Control Technology
|
AccuDrive™
|
|
Tip-to-Ground Resistance
|
2 Ohms or less
|
|
Meets or Exceeds ANSI/J-STD-001
|
Yes
|
|
Tested using ANSI/ESD S13.1-2015
|
Yes. Tested up to 50MHz using S13.1-2015 Method. Meets or Exceeds J-STD-001 and ESD S20.20 Requirements
|
|
Meets or Exceeds ANSI/ESD S20.20
|
Yes
|
|
Temperature Accuracy
|
Meets or Exceeds ANSI/J-STD-001 Requirements
|
|
Temperature Range
|
Temperature Range 193-454°C (380-850°F)
|
|
Tool Stand
|
Can hold up to 7 tips, comes standard with sponge, stay moist well and brass wool to clean oxidation from tip
|
