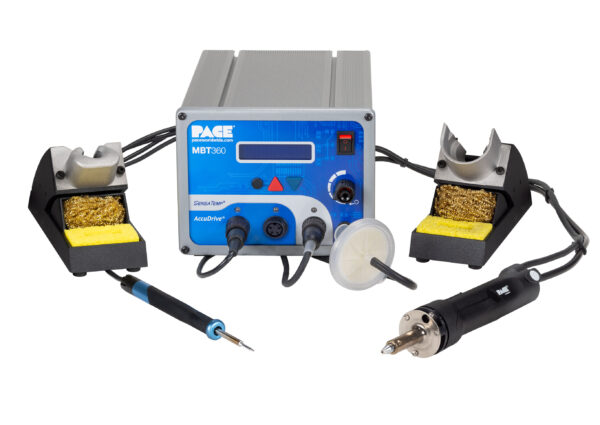

The MBT360 is truly the best of both worlds, combining PACE’s renowned SensaTemp® heating technology, which boasts superior performance and versatility, with our new advanced AccuDrive® tip-heater cartridge capability for today’s most challenging production soldering and rework applications.
The MBT360 allows the user to customize their workbench with any AccuDrive or Sensatemp handpiece for maximum capability, versatility and economy.
Only PACE offers complete interoperability and interchangeability
across its entire new system and handpiece line. Buy what you need now. Add capability later. With PACE’s new system and handpiece line, you can mix and match handpieces and systems, reduce inventory requirements and maximize cost savings!
*Tips included*
(1) ThermoDrive Tip (1.02mm) (1121-0931-P5)
(1) 1/16″ 30° Chisel Tip (1.59mm) (1130-0019-P1)
-
FeaturesTwo AccuDrive ports, one SensaTemp® port and the self-contained auto Snap-Vac® pump.ISB and Auto-Off capability increases tip-life up to 6 times and greatly reduces tip costs.AccuDrive® Tip-Heater Cartridges meet and exceed ANSI/J-STD-001 Absolute Temperature Accuracy Requirement without the need for calibration.Backlit, digital LCD screen displays set and actual temperatures of all three channelsPassword protected settings allow the operator to work within an approved temperature range or at a single temperature.
-
SpecificationsPower Requirements115 VAC, 60 Hz (240 watts maximum) || 230 VAC, 50 Hz (240 watts maximum)Power Ports2 AccuDrive®, 1 SensaTemp®Self-Contained Internal PumpSnap-Vac® Vacuum/Adjustable Pressure CapabilityDimensions135mm (5.3”) H X 165mm (6.5”) W X 260mm (9.25”) DWeight5 Kgs (11 lbs.)Tip-to-Ground Resistance< 2 OhmsTemperature Stability1.1 C (2 F)Temperature AccuracyMeets or exceeds ANSI J Std 001Set Temperature RangeAccuDrive® 177-454°C (350-850°F) || SensaTemp® 37-482°C (100-900°F)
